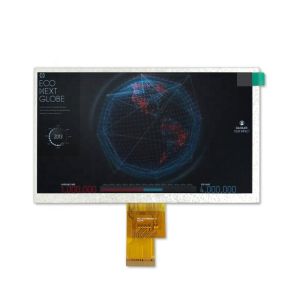

China High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs wholesale

High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs

Ask Latest Price

Video Channel

Place of Origin :Guangdong, China

Brand Name :TSD

Packaging Details :High luminance 7.0inch screen tft lcd panel ips display wide viewing 30LEDs LVDS
Packed in anti-static bag each,a certain quantity in one carton

Supply Ability :10000 Piece/Pieces per Month

Price :Negotiable

Type :TFT, TFT LCD

Display Size :7.0inch

Supplier Type :Manufacturer

Resolution :1024x(RGB)x600

Active Area :154.21x85.92mm

Outline Dimension :164.9x100x3.5mm

Viewing direction :All O'clock

Interface Type :LVDS

Brightness :1000 Cd/m2

Backlight :30LEDs

Operating Voltage :DVDD=3.3V

Color Depth :16.7M

Port :Shenzhen/Hong Kong

MOQ :Negotiable

Contact Now

Add to Cart

View Product Description

High luminance 7.0inch screen tft lcd panel ips display wide viewing 30LEDs LVDS

High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs

Item	Specification
Display Mode	7.0''/α-Si TFT/IPS/ Transmissive/Normally Black
Part NO.	TST070XVZH-05B
Resolution	1024x(RGB)x600
Outline Size	164.9x100x3.5mm
Active Area(WxH)	154.21x85.92mm
View Direction	All O'clock
Pixel Pitch	0.1506x0.1432
Interface	LVDS
Driver IC	EK79001+EK73215
Backlight	30LEDs, 200mA, 17V
Surface Lumiannce	1000nits
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

About us

Who is TSD?

TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.

1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.

Application

What TSD has?

1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:

display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:

we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:

Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...

Certifications

Packing & Delivery

Customer Photos

FAQ

Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
